Fire-resistant cable mica tape

Fire-resistant cable mica tape is a shield in electrical cables. It helps stop fire from spreading during emergencies. More than half of big fires in the last ten years were caused by cable failures. These failures often happened because of bad fire protection. Mica tape is made from muscovite, phlogopite, or synthetic mica. It can handle heat up to 900 °C. This material helps circuits work longer in high heat. It lowers the chance of more fires and helps people leave safely.

What Is Fire-resistant Cable?

Definition

A fire-resistant cable is a special electrical cable. It keeps working even if there is a fire. This cable helps things like fire alarms and emergency lights stay on. These systems are important during a fire. Safety rules, like IEC 60331 and BS 6387, say fire-resistant cables must work for a certain time in a fire. This is usually one or two hours. These cables use mica tape, mineral insulation, or ceramifiable silicone rubber. They are not the same as flame-retardant cables. Flame-retardant cables only slow down fire but do not keep working in a fire.

Note: Fire-resistant cables are also called circuit integrity cables. Safety codes say these cables must be used for important systems in places like buildings, tunnels, and hospitals.

Key Features

Fire-resistant cables have special features that make them different.

They keep power on during a fire. This helps emergency tools work when needed.

They use copper conductors that can handle high heat. They also have layers of mica tape for more safety.

Many are halogen-free, so they make less smoke and toxic gas. This helps people get out safely.

They follow strict rules, like NEC 760.176(F), to make sure they work in fires.

They help stop fire and smoke from spreading and keep circuits working.

Fire-resistant cable performance is checked by how long it can last in fire. It is also checked by how well it stops fire and smoke. Tests look at how much smoke or toxic gas comes out. They also check if the cable stays strong under heat and pressure. These features make fire-resistant cables a good choice for keeping people and property safe in a fire.

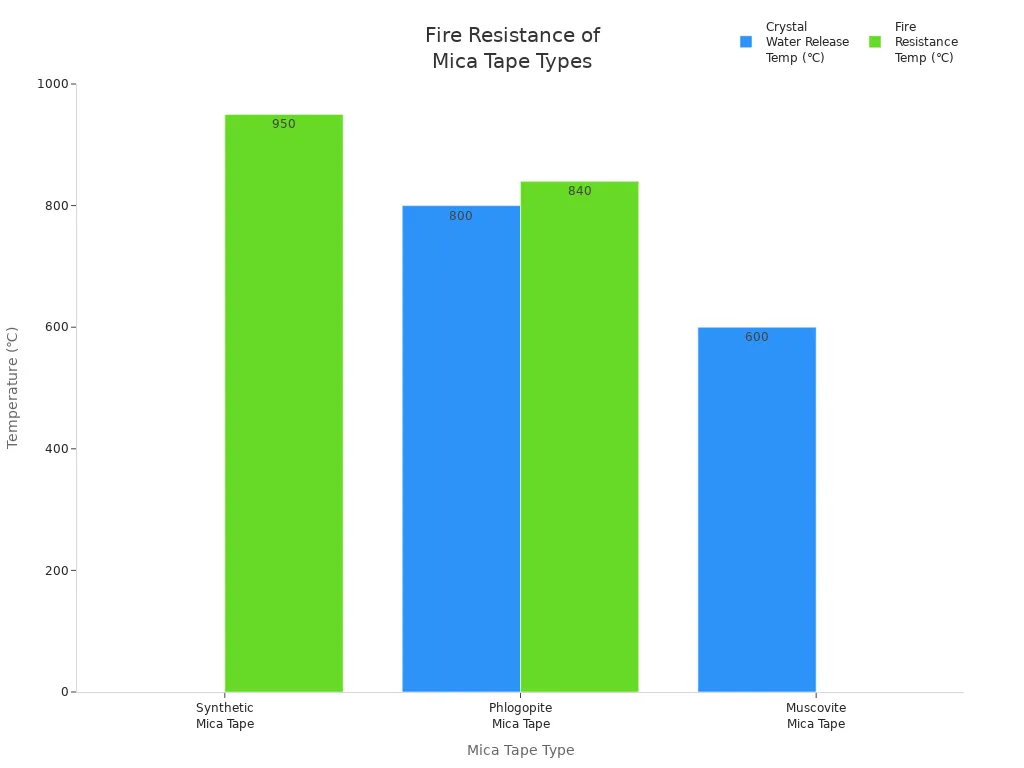

Mica Tape Types

Phlogopite

Phlogopite mica tape is also called amber mica tape. It can handle very high heat. This tape stays strong between 800°C and 900°C. Phlogopite does not fall apart fast in a fire. It lets out its crystal water when it gets hotter than 800°C. This helps it stay tough when things get really hot. That is why people use it for fire-resistant cables in hot places. Phlogopite also does not get damaged by water, acids, alkalis, oils, or solvents. It does not catch fire or make bad smoke. Many engineers pick phlogopite mica tape for most fire-resistant cable jobs. It works well and does not cost too much.

Muscovite

Muscovite mica tape is sometimes called white mica tape. It is good at handling heat from 500°C to 700°C. Muscovite lets out its crystal water at about 600°C. This means it cannot take as much heat as phlogopite. But muscovite is better at handling high voltage. This makes it useful for some electrical jobs. It is not used much in cables that need to last in the hottest fires. Muscovite tape is best when only some fire resistance is needed.

Synthetic

Synthetic mica tape gives the best fire resistance. It stays strong at more than 950°C. It can even work at over 1000°C. Synthetic mica does not have crystal water. So, it does not break down in heat like natural mica. This tape is picked for very important projects. These include nuclear power plants or tunnels. Synthetic mica tape stays bendy and strong even after a fire.

Tip: Mica tapes do not make bad smoke in a fire. This helps people get out safely.

Each mica tape type has its own job. You should pick the right one based on how much fire resistance the cable needs.

Standards and Applications

International Standards

Many groups make rules for cables to work safely in fires. These rules help keep people and buildings safe. Some important standards for fire-resistant cables are:

IEC 60331 Series: This test checks if cables still work in a fire. Cables are burned at 750°C or hotter. The test sees if the cable can carry power for up to 120 minutes. Different parts of this series test power, data, and fiber optic cables.

IEC 60332 Series: This test checks if cables stop fire from moving. It tests single wires and groups of cables. It looks at how far fire travels on the cable.

BS 6387: In the UK, this test uses fire, water spray, and shock.

EN 50200 & EN 50577: These European tests check how long emergency cables work in fire and shock.

UL 2196: In North America, this test checks fire resistance in cable systems.

IEC 61034 and IEC 60754: These tests check how much smoke and toxic gas come out in a fire.

These rules make sure fire-resistant cables keep working in a fire. They also help stop fire from spreading and lower toxic smoke. Each place has its own rules, but all want to keep people safe.

Following these rules helps cables work in fires, stops fire from spreading, and keeps smoke low.

Typical Uses

Fire-resistant cable mica tape is used in many important systems. These cables help keep things working during a fire. Some common uses are:

Fire and gas alarms warn people early.

Emergency lights and exit signs show safe ways out.

Elevators, fire doors, and fans help people leave safely.

Communication systems in tunnels, airports, and stations.

Power for hospital life support, control rooms, and data centers.

Oil and gas plants use them for pumps and safety gear.

SCADA and RTD systems help control things in emergencies.

Many buildings, tunnels, and power plants use these cables to keep people safe. Hospitals and tunnels need cables that do not make thick smoke or toxic gas. If cables do not follow the rules, alarms or lights might not work in a fire. This can put people in danger and break safety laws.

Fire-resistant cable with mica tape helps power and communication work when needed most. Checking cables often and following rules keeps these systems safe and working.

Fire-resistant cable mica tape helps save lives and protect buildings. It keeps circuits working when there is a fire. You need to pick the right type and follow the correct rules. This is important for places like hospitals and tunnels. To check if the cable is good, look at its fire resistance and how it is built. Make sure it meets all the safety standards.

Always use certified, high-quality fire-resistant cable for important systems. This helps keep people and buildings safe.

FAQ

What does mica tape do in fire-resistant cables?

Mica tape acts as a heat barrier. It keeps the cable’s core safe during a fire. This layer helps the cable keep working when exposed to high temperatures.

Can fire-resistant cables with mica tape be used outdoors?

Yes, many fire-resistant cables with mica tape work outdoors. They resist water, chemicals, and sunlight. Always check the cable’s rating before outdoor use.

How can someone check if a cable meets fire safety standards?

Look for markings like IEC 60331 or BS 6387 on the cable. Ask for test certificates from the supplier. Certified cables follow strict fire safety rules.

Are fire-resistant cables safe for hospitals and schools?

Yes, these cables are safe for hospitals and schools. They make less smoke and toxic gas. This helps protect people during a fire.

Does mica tape affect the cable’s flexibility?

No, mica tape stays flexible. It bends easily around corners and through tight spaces. This makes installation simple in many places.
